contacts and potentiometers scanner for organ pedals

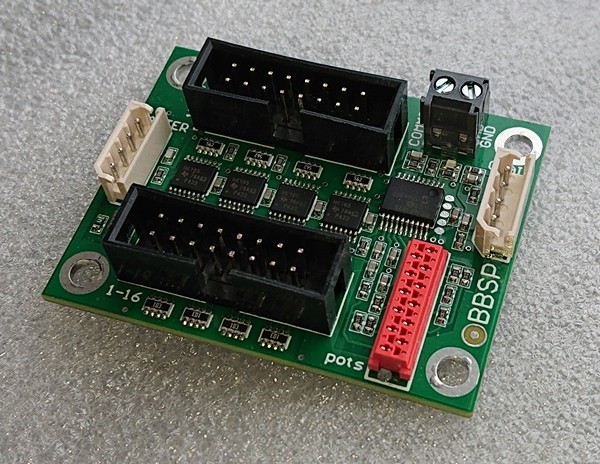

BBSP is mixed kind of scanner especially designed for pedal controls in organ consoles. You can connect keys and potentiometers with just one board, and only one cable connected to master controller. Keys must have one pole of each contact connected to ground. Keyboard is connected using twor 16-pin IDCs. One connector covers 16 keys.
The red connector is for potentiometers. It alows easy connection to 4 potentiometers, with 3 separate wires going to each of them. It can work with plain potentiometers, or voltages in range 0-5V. You may use dedicated cable with a plug to easy access those inputs or you can make your own cable by attaching 12-pin MicroMatch IDC plug on ribbon cable. Part number for the plug is 1-215083-2

As any other scanner board, this one cannot work just by itself, but it needs one of the master controllers to operate.

Features:

scans 32 contacts, 1 wire per key
inputs for 4 potentiometers, or voltages, useful for swell pedals
usable with MRG2, MBBS, MIDI128, MPOT32
includes cable to master controller
chain input to connect another scanner
dimensions: 55x42mm

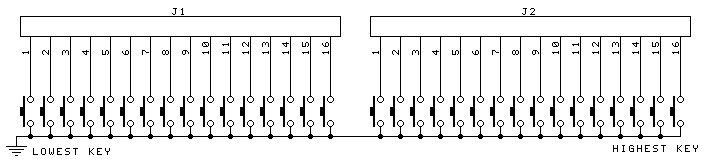

Here is connection diagram for contacts:

And here for the potentiometers on the red connector:

Pin 1 is at the side with a hole in PCB, for polarizing key of the plug. It's also the red wire of PotsTail.
