REED32WIDE


TEMPORARY UNAVAILABLE
price: 70.00 EUR
where is Add-to-Cart button?

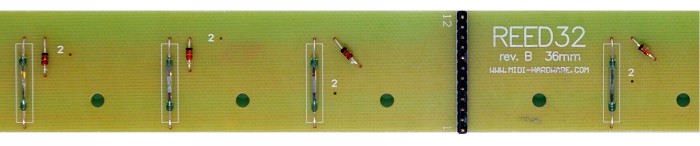

This is complete set of magnetic contacts organized in diode matrix, prepared for pedalboards with wider keys spacing than ussually used. To MIDIfy the pedalboard, all you need is the following set, and matching controller. For standalone pedals with individual MIDI output you need to plug the PEDSCAN module. If the pedals are integral part of bigger console, you need the PDS board that connects to a master controller.

It consists of 3 PCBs linked with ribbon cable, so it's easier to ship, but most of all they can be aligned in arc, which sometimes helps in radial pedals. Also, the boards can be bent to some extent, so concave pedals can also be MIDIfied with it.

For standard AGO/BDO spacing go to REED32.

We can make custom reed contact boards for any reasonable key spacing - from 15 to 40mm, and any number of notes, up to 64. Use the link below to discuss availability, prices and delivery timelines.

FEATURES

  • high quality, long life, magnet activated dust proof reed contacts
  • 32 notes C to G
  • magnets included with the order
  • 36mm reed spacing
  • 12-pin vertical header to plug controller module
  • PCB width 30mm (1.2'')

Email for details
