This board is useful when you need analog inputs. It can be daisy-chained to grow into bigger MIDI system. With 8 analog inputs (IDC plugs included) it creates easy
expansion to any MIDI setup. This board desn't have MIDI connections onboard, it needs master controller like MRG2, or MBBS or MIDI128 to work.
It just adds more analog inputs to your system built with midi-hardware.com boards
Features:
- scans 8 potentiometers or external voltages
- no spurious MIDI messages - only connected ports are active
- user defined scan rate (5 to 100ms)
- user defined resolution, from 1 to 7 bits
- "half-track" mode offering full range at only 50% wiper travel
- reverse mode, so you don't have to rewire a pot if it turns wrong way
- usable with MRG2, MRGMINI, MBBS, MIDI128
- includes cable to master controller
- more marketing talk

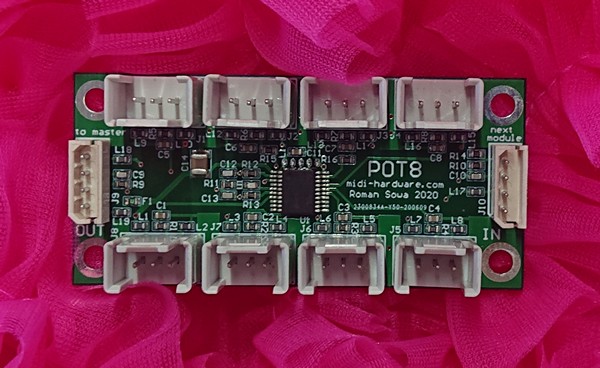

The board has 8 light-gray connectors, as shown in the photo. Matching plugs are included. Those are IDC plugs, no soldering needed. All you need is a vise or pliers,
or even your fingers if you have strong hands. Each connects to one potentiometer directly. The plugs accept ribbon cable,
or individual wires. It is even possible, and recommended, to attach shielded microphone cable
Email for details
