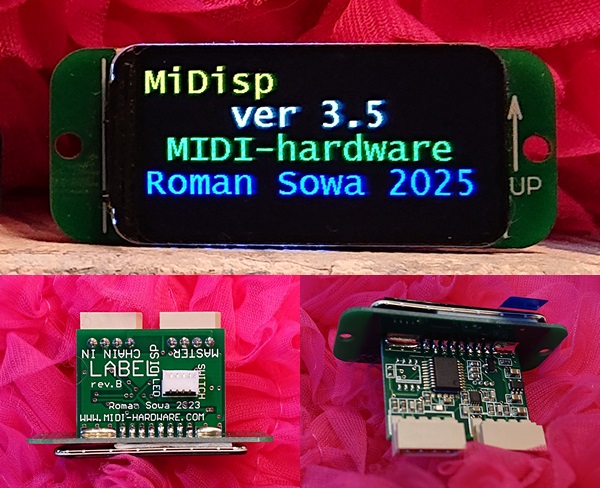

MiDisp3C

Full color graphic display considerably bigger than its smaller brother. It is functionally equivalent to other displays sold here, meaning it works as system display showing all the settings and performance info, also can become a label in multi-display setup, and provides single contact input and LED output that are obviously controlled by MIDI. Up to 100 of those can be connected in series, and it plugs to any scanner port of master controller like MBBS, MRG2, MIDI128, just like every other extension board available here.
Unlike smaller MiDisp3, this one works with only one font size, which is clearly readable from a distance. Every other feature is common to every size of MiDisp3. So far only 2 are sold here, but there will be more.

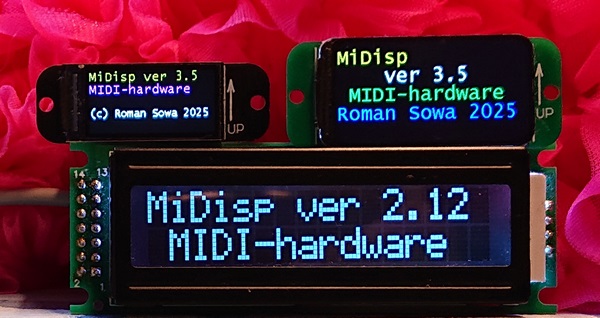

See how it compares to small MiDisp3 and old MiDisp:

It was primarily designed for Hauptwerk labeling system, but it's easy to display text by sending previously prepared MIDI messages from sequencer or DAW. Hauptwerk labeling format is very limited, to 32 characters only and in single color. By inserting special characters (which Hauptwerk changes to question marks) it is possible to use different colors on single display with single MIDI SysEx message.

Features:

• 8 font colors, 1 size
• displays Hauptwerk text messages when plugged to MRG2 or MIDI128 or MBBS
• input for a switch, can be used as additional on/off controller like stop/rank/register
• output to drive a LED, responds to incoming MIDI notes
• MIDI monitor for displaying MIDI events
• indication of master controller's state during user setup
• daisy-chain input
• usable with MRG2, MRGMINI, MBBS, MIDI128
• includes cable to master controller
• dimensions 47x20mm, 29mm depth
• more marketing talk

Please go to Tutorial section to see how MiDisp interacts with the user during setup procedures.

Email for details
